Eaton 9155 Marine (8-30kVA)
The 9155 Marine UPS is a family of enery-saving online double-conversion marine uninterruptible power system that provides users with 8–30 kVA output capacity either with a single-input and single-output or a three-input and single-output configuration. This family of scalable and reliable UPSs is used on ships or offshore platforms to protect IT infrastructure in applications such as emergency lighting systems, emergency public address systems, computer and communication systems, and ship automation control systems.
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (optional)
- Parallel operation with up to 3 units

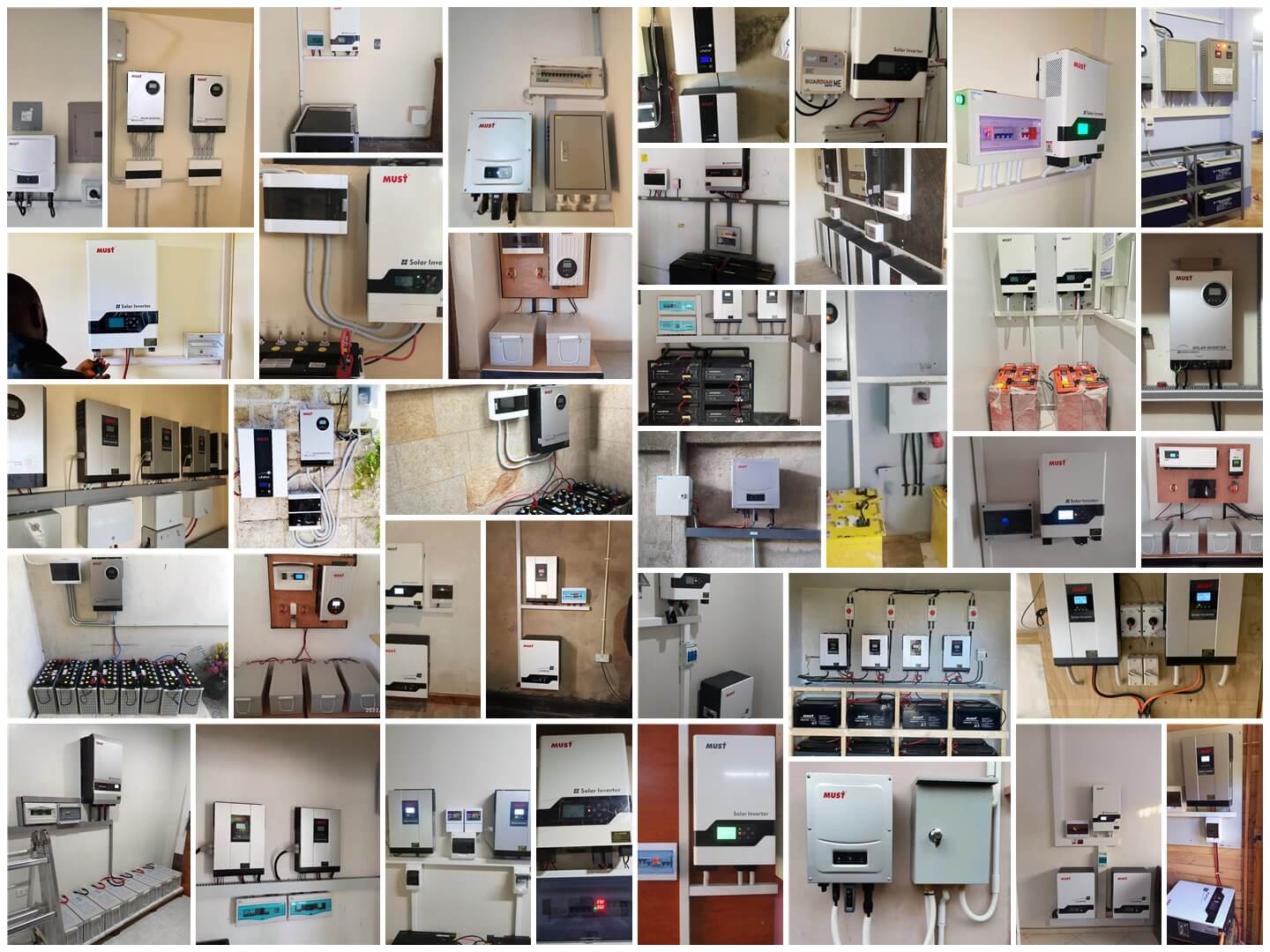

↓↓↓Installation Portfolio————
Visits: 0
Core features
- Features static bypass and manual bypass switches for a smaller footprint and compact design
- Works perfectly with generators and other upstream devices with efficient power factor control technology, offering an input power factor up to 0.99 with low total harmonic distortion from the input current
- Extends battery life by using ABM™ intelligent battery management technology
- Supports customizable redundancy solutions with Hot Sync paralleling technology that supports up to 4 UPSs operating in parallel
- Offers an intuitive, user-friendly LCD interface and many connection options
- Offers IP22 protection for the main cabinet with its internal components are specially treated to resist salt spray corrosion and function in humid environments
- Boasts a marine-specific design that meets DNV and BV certifications and that complies with the IEC60945 marine standard
伊顿 9155 船用型 UPS—技术指标 |
|
|---|---|
| 产品快照 | |
| 功率等级 | 8–30 KVA |
| 额定电压 | 220–230–240 V |
| 频率 | 50 / 60 Hz |
| 配置 | Tower |
| UPS型号 | |
| Eaton 9155 Marine | |
| Eaton 9155 Marine (8–30 KVA) Specifications | |
The 9155 Marine UPS is a family of enery-saving online double-conversion marine uninterruptible power system that provides users with 8–30 kVA output capacity either with a single-input and single-output or a three-input and single-output configuration. This family of scalable and reliable UPSs is used on ships or offshore platforms to protect IT infrastructure in applications such as emergency lighting systems, emergency public address systems, computer and communication systems, and ship automation control systems.
