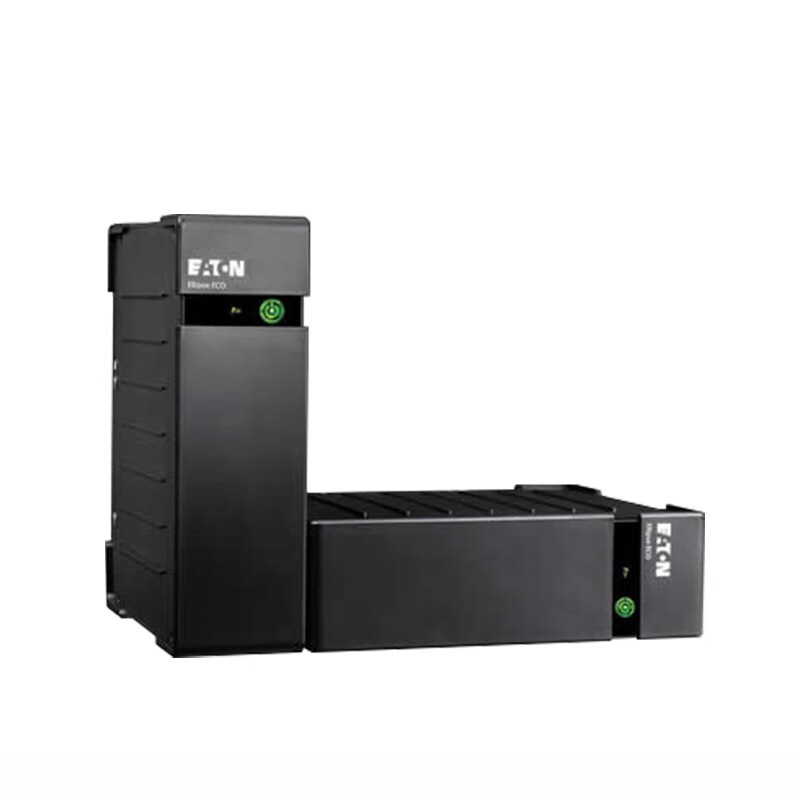

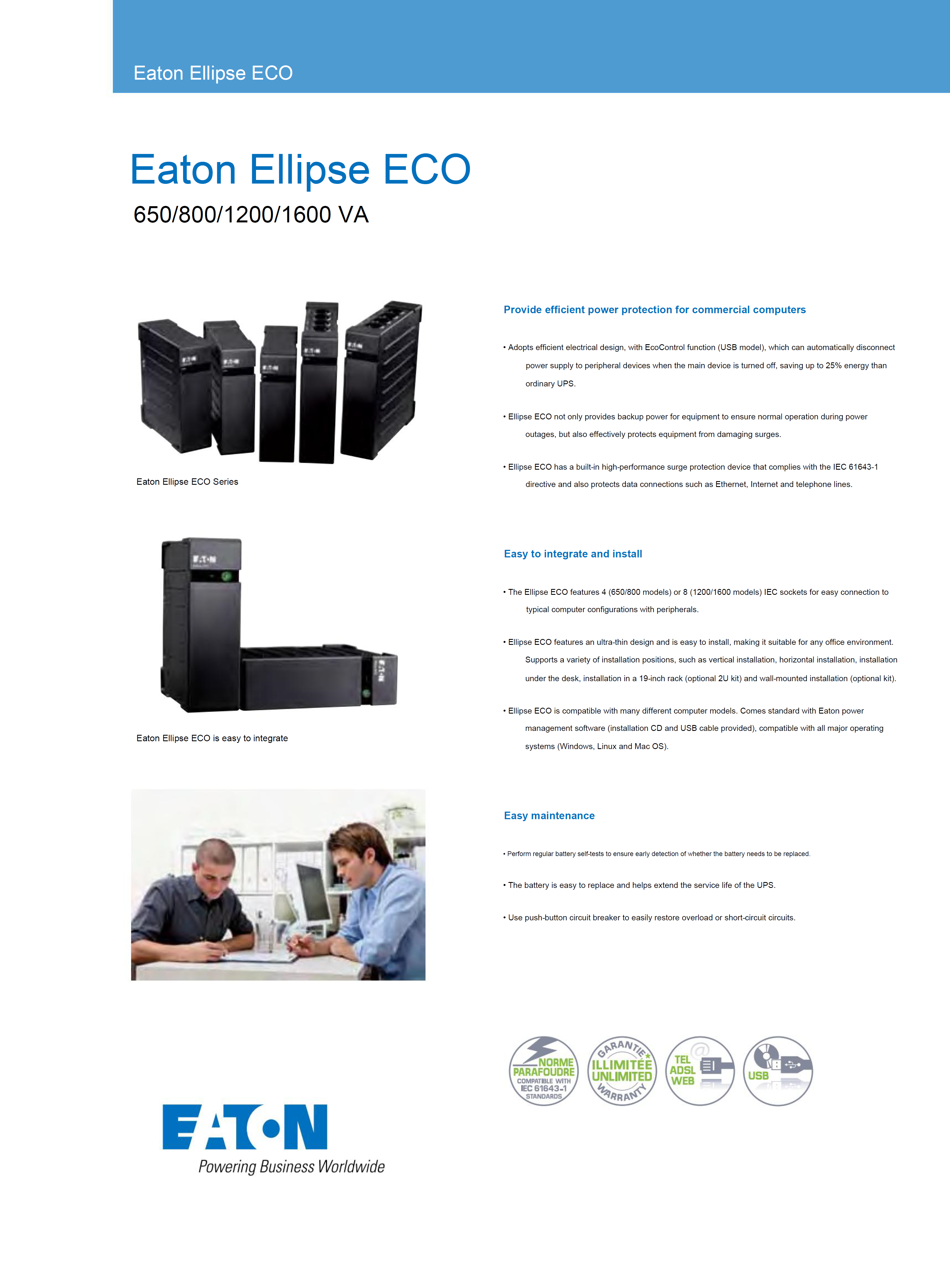

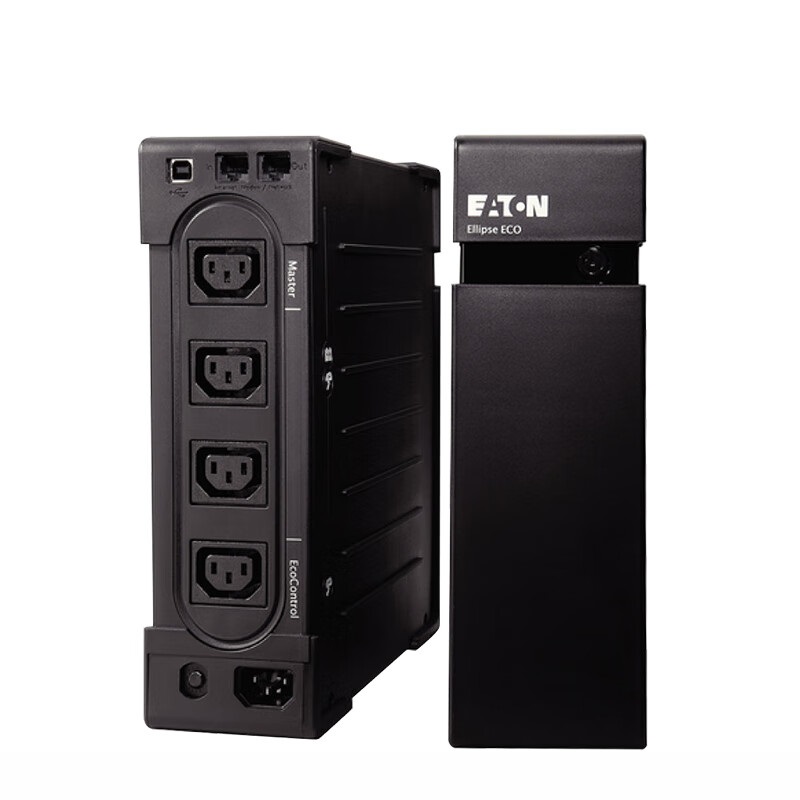

The Eaton Ellipse ECO UPS is a compact power protection device with built-in high-performance surge protection devices (compliant with IEC 61643-1 standard). With efficient electrical design and EcoControl functionality, Eaton Ellipse ECO can save up to 25% energy compared to the previous generation. Continue to visit and learn more about uninterrupted power supply UPS products.
Visits: 9

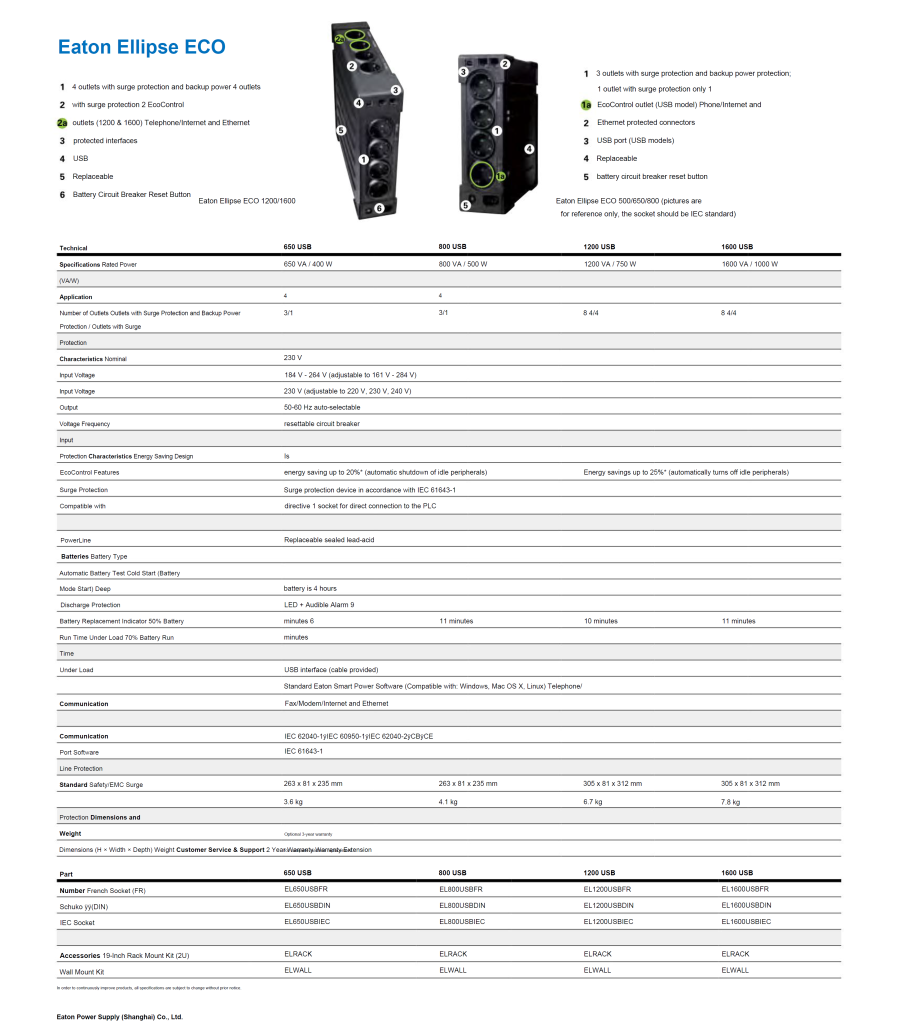

EATON ELLIPSE ECO UPS - 技术指标 |
|||
---|---|---|---|
产品快照 | |||
功率等级 | 500-1600VA | ||
额定电压 | 230V | ||
频率 | 50/60Hz自适应 | ||
配置 | 塔式 | ||
UPS型号 | |||
零件号码 | 额定容量(伏安 / 瓦特) | 输入连接 | 输出连接 |
Eaton Ellipse ECO IEC | |||
9400-43126-00P | 500 / 300 | C14 | (3) C13, (1) C13 surge only |
9400-43129-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
9400-43132-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
9400-5336-00P | 800 / 500 | C14 | (3) C13, (1) C13 surge only |
9400-6335-00P | 1200 / 750 | C14 | (4) C13, (4) C13 surge only |
9400-8309-00P | 1600 / 1000 | C14 | (4) C13, (4) C13 surge only |
