EH9115 Series Low Frequency Three Phase (3/3) Online UPS (20-200KVA)
Its advanced battery charging system enables the UPS to supply a long backup time while the charging time is rather short, and its temperature compensation system can help to prolong the service life of the battery. Also, its circuit is simple, which reduces the number of components and makes the manchine more compact and more reliable.Its true double-conversion online technology provides pure and safe power supply to all appliances, communication equipment and important loads connected to the internet, and the DSP technology responds quickly to different power supply problems, making sure its load will work uninterruptedly.It is compatible to all kinds of loads and widely used in the fields of energy sources, transportation, office, medical equipment, engine-room, data center, toll station and so on.
Features:
- Range from 20kva to 200kva;
- Ture double-conversion online technology;
- DSP 100% micro controlled;
- N+1 parallel redundant connection;
- High efficiency >92%;
- Dual power supply (selectable);
- Accept 100% unbalanced load;
- Cold start;
- Intelligent battery control;
- Compatible with generators;
- Powerful communication system(RS232. SNMP. GPRS).

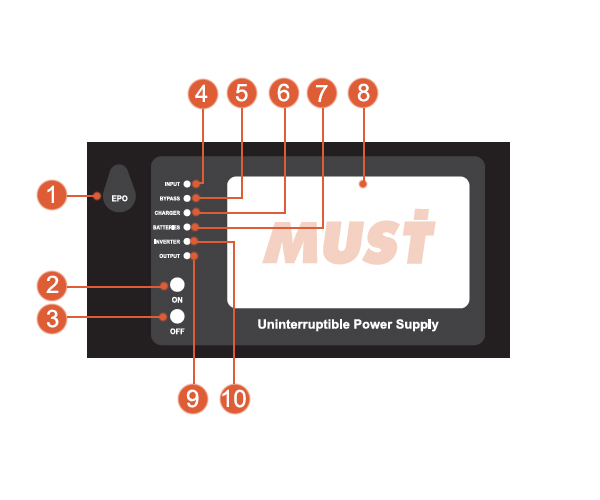

LCD/LED DISPLAY INFORMATION
1. EPO
2. ON
3. OFF
4. Input led
5. Bypass led
6. Charger led
7. Battery led
8. LCD
9. Output led
10. Inverter led

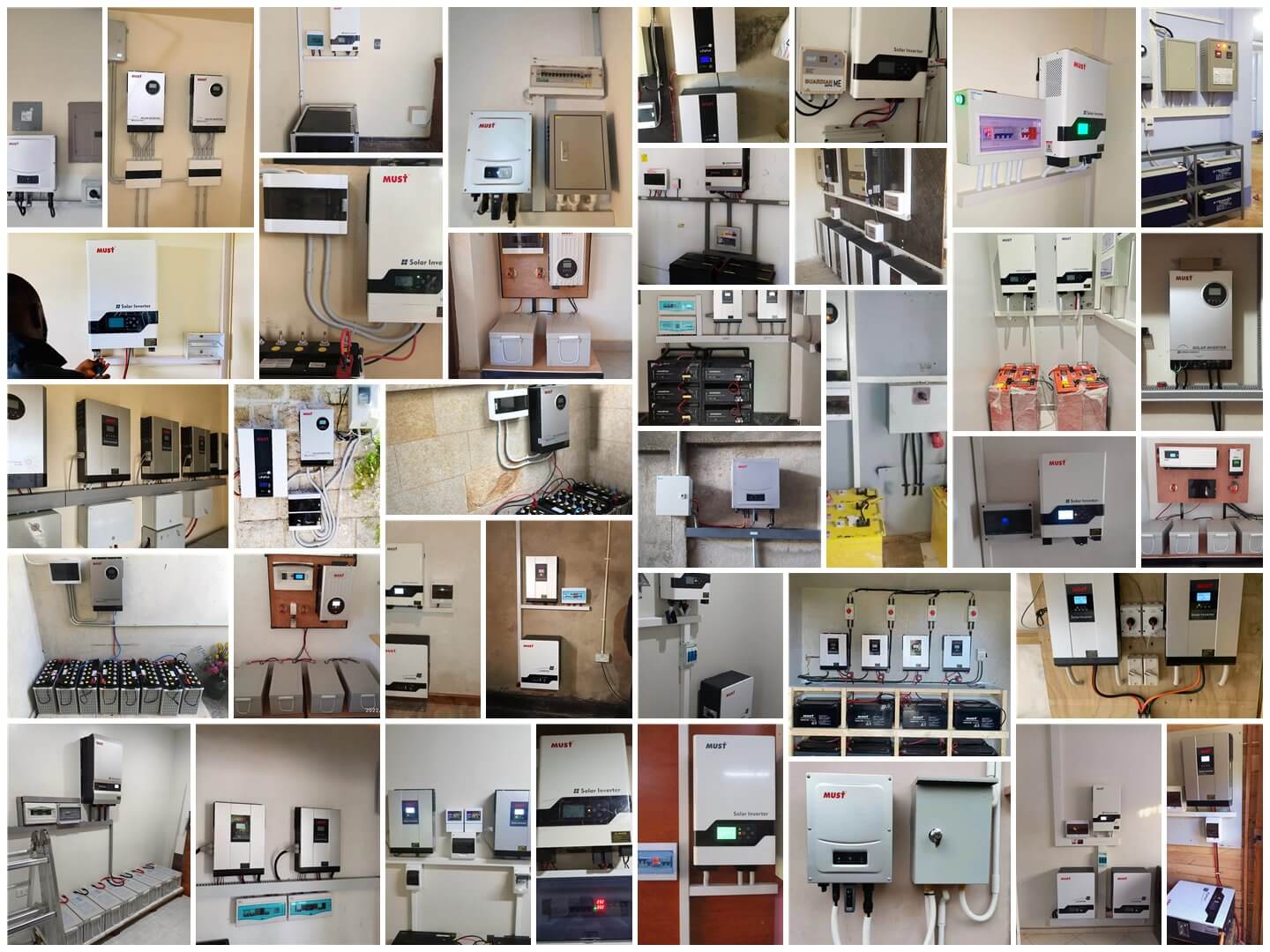

↓↓↓Installation Portfolio————
Visits: 0
| MODEL(EH9115-) | 20K3/3 | 30K3/3 | 40K3/3 | 60K3/3 | 80K3/3 | 100K3/3 | 120K3/3 | 160K3/3 | 200K3/3 |
|---|---|---|---|---|---|---|---|---|---|
| GENERAL | |||||||||
| Capacity | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA |
| design technology | true online double conversion, inverter based on igbt’s, 6 pulses rectifier, dry ISO transformer inverter side. | ||||||||
| features | 100% digital with last DSP technology / compatible with worldwide UPS monitoring system, immune to phase rotation input (for rectifier ) / dual input (optional)/LCD display / thermomagnetic protection for input, output, bypass and battery / UPS parallel ready with other UPS of the same capacity for redundancy / | ||||||||
| estimated useful life | > 20 years | ||||||||
| efficiency ac / ac | ECOMODE >98%, inverter> 92%, AC-AC 91% | ||||||||
| INPUT | |||||||||
| voltage (*) | 3×380/220 vac ± 25% (165v to 275v) | ||||||||
| Thermomagnetic protection | thermomagnetic breaker | ||||||||
| lead wires (*) | 3 phases +neutral+ground | ||||||||
| frecuency (*) | 50hz ± 25% (42.5hz to 62.5hz) | ||||||||
| power factor | 0.8 typ at full load | ||||||||
| technology | rectifier 6 PULSES, immune to phase rotation for rectifier input. | ||||||||
| INVERTER | |||||||||
| voltage (selectable) (*) | 3×380/220 vac ± 1% | ||||||||
| lead wires (*) | 5 wires ( 3 phases +neutral+ground ) | ||||||||
| Thermomagnetic protection | Thermomagnetic breaker for output | ||||||||
| frecuency | 50hz ± 0.1% | ||||||||
| waveform type | Sine wave generated by the inverter with high frequency pwm | ||||||||
| harmonic voltage distortion t.h.d | <2% for linear load / <5% for non-linear load | ||||||||
| crest factor | 2.8 to 3.2 | ||||||||
| power factor | 0.9 | ||||||||
| overload recovery. | automatic | ||||||||
| isolation transformer | dry type for inverter – voltage 380v/220v | ||||||||
| voltage regulation | ± 1% for balanced load. | ||||||||
| overload capacity (*) | 125% for 12 minutes. / 150% for one minute / 200% one cycle | ||||||||
| Short circuit protection | Transfer to bypass | ||||||||
| BYPASS | |||||||||
| Voltage | 3×380/220 vac +-25% (adjustable) | ||||||||
| lead wires (*) | 5 wires ( 3 phases +neutral+ground ) | ||||||||
| Automatic Bypass | static, solid state, 0 mseg for standar transfer, < than half cycle for failure transfer. | ||||||||
| Manual bypass | Thermomagnetic breaker for manual bypass, uninterrupted operation in normal transfers. | ||||||||
| Emergency Power Off | local EPO and / or remote | ||||||||
| Protection and short circuit | Fast fuse and termomagnetic input breaker (different of manual bypass breaker). | ||||||||
| BATTERY | |||||||||
| Thermomagnetic protection | Breaker protection. turn the system off when the battery is low. battery test. smart charger. | ||||||||
| Cold start | Yes | ||||||||
| Quantity | 32 pcs (29 to 32 pcs adjustable) *** | ||||||||
| Voltage | Nominal 384 V, Float 435 (Adjustable) | ||||||||
| type (*) | sealed and maintenance free. technology vrla (valve regulated lead acid) | ||||||||
| Backup time at full load (*) | Customize | ||||||||
| typical recharge time. | 4 hours 90% | ||||||||
| battery management. | auto-test, adjustable battery transfer point and settings of alarm. | ||||||||
| charger | soft start to full load. Adjustable current for charge batteries. | ||||||||
| PROTECTIONS AND STANDARDS | |||||||||
| hardware protection | Thermomagnetic breaker for input, thermomagnetic breaker for output, thermomagnetic breaker for battery and thermomagnetic breaker formanual bypass, surge protection,fast acting bypass fuse, fast-acting fuses in dc and bypass, fan, redundant power supply, 5 zones temperature sensors, on-off switch, audible alarms. | ||||||||
| Sofware protection and warning | Discharge batteries, manual shutdown Inverter, manual bypass switch active, emergency power off , manual shutdown, SCR failure, bypass rotation failure, bypass out of range, overload, low battery, low output voltage, high output voltage, DC fuse open, power supply 5v , power supply 14v, inverter overvoltage, overload greater than 200% , transfer failure, inverter voltage out of range, ground and neutral high, SCR inverter fail, UPS in bypass mode, low frequency, charger ON, inverter ON and others. | ||||||||
| Standars | EN 62040-1 safety , EN 62040-2 EMC/EMI , C62.41 surge protection | ||||||||
| MONITORING AND COMMUNICATIONS | |||||||||
| GPRS | Compatible with Global UPS monitoring system ** | ||||||||
| front panel | standar: lcd display 240 * 128 reading electrical parameters. touchscreen. LED mimic.Input voltage, bypass voltage, output voltage , inverter voltage, output current, ground to neutral voltage, input frequency, output frequency, bypass frequency, active power, reactive power, total power, ISO transformer temperature, IGBT temperature, DSP temperature, battery or environment temperature, battery voltage, battery current, two power supply voltage etc | ||||||||
| alarms | audible and visual alarms for non-normal conditions. | ||||||||
| communications | rs232 serial port. Dry contacts, snmp-rj45 for remote monitoring (optional). gprs module for remote monitoring via GPRS network (optional). | ||||||||
| UPS CONDITIONS | |||||||||
| temperature | 0°c to 40°c | ||||||||
| relative humidity. | 0 to 95% noncondensing | ||||||||
| audible noise | <65 db | ||||||||
| DIMENSIONS AND WEIGHT | |||||||||
| UPS dimensions in mm (front *hight * deep) | 540*622*1125 | 664*865*1548 | 966*890*1748 | 1160*1043*1900 | |||||
| UPS weight in kg | 225 | 273 | 437 | 500 | 600 | 700 | 740 | 810 | 850 |
