VALVE REGULATED GEL BATTERY

Front Access Lead Acid Gel VRLA Battery FCTG Series 12V

As a well renowned front access lead acid battery manufacturer in China, MUST ENERGY offers the widest selection of front access AGM batteries and gel VRLA batteries. The gel technology has numerous superiorities over the equivalent AGM battery range, especially for telecommunication applications. The FCTG type front terminal battery comes with long lasting design life and front access connections for fast, easy installation and maintenance, and is ideally suitable for telecom outdoor equipment, renewable energy systems and other severe environments.

Features:

Get Pricing/Info


Product Features of Industrial Battery:
  • This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist.
  • The electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates.
  • Serving as perfect power supply equipment, the front access lead acid battery is designed with slim shape. Front access terminal connection is convenient for installation and maintenance, and space saving.
  • Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our gel VRLA battery.
  • Due to a unique design, the electrolyte volume of this battery can not reduce in use, and it requires no watering during service life.
  • Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 8 years of design life at 25℃.
  • High purity raw materials ensure super low battery self discharge.
  • Thanks to the use of gas recombination technology, our industrial battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment.
  • By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety.



Applications of Front Access Lead Acid Battery:
  • 19inch and 23inch power cabinet;
  • Telecommunication systems including exchange board, microwave station, mobile base station, data center, radio and broadcast station;
  • Power supply system of private network of LAN;
  • Signal system and emergency lighting system;
  • EPS and UPS system.



Other Features:
  • Voltage covers: 12V
  • Capacity: From 55/10HR to 190/10HR
  • Front Access Lead Acid Battery, Gel VRLA Battery mainly for Telecommunication System

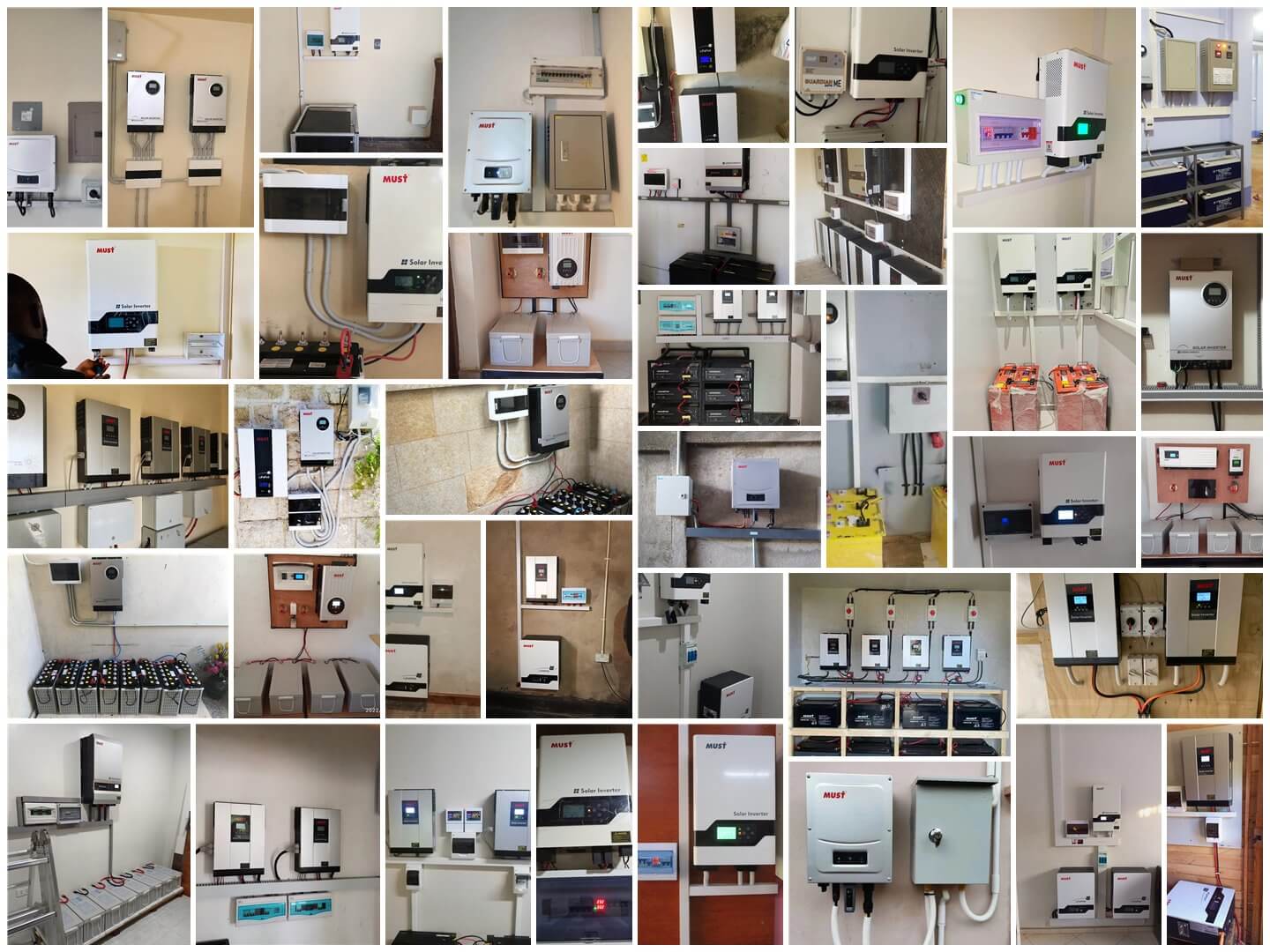

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 0

Specification

Models Nominal voltage (V) Capacity (Ah) Overall dimensions (mm) Weight (kg ± 3%) Terminal Layout Bolt
Length Width Height Total height
FCTG12-55 12 55/10HR 277 106 223 223 16.1 T2 C M6×16
FCTG12-80 12 80/10HR 562 114 188 188 25.1 T3 C M6×16
FCTG12-100 12 100/10HR 507 110 223 223 29.5 T5 C M8×16
FCTG12-110 12 105/10HR 394 110 286 286 30.6 T5 C M8×16
FCTG12-125 12 125/10HR 552 110 239 239 37.6 T5 C M8×16
FCTG12-150 12 150/10HR 551 110 288 288 44.2 T5 C M8×16
FCTG12-160 12 160/10HR 551 110 288 288 44.7 T5 C M8×16
FCTG12-175 12 175/10HR 546 125 316 323.5 53.7 T5 C M8×16
FCTG12-180 12 180/10HR 560 125 316 316 54.2 T5 C M8×16
FCTG12-190 12 190/10HR 560 125 316 316 55.5 T5 C M8×16
