Lead Acid Replacement 12/24V

Lithium Iron Phosphate Battery LP15-12100 (12.8V/100Ah) Lithium Iron Phosphate Battery LP15-12100 (12.8V/100Ah)

Our line of LiFePO4 batteries offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery. Features include advanced battery management systems (BMS) and active intelligent monitoring.

Features:

  • 6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
  • Low maintenance batteries with stable chemistry;
  • Battery Management System (BMS) is incorporated against abuse;
  • up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
  • Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
  • Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
  • Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Get Pricing/Info


APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Caravan
•Marine
•Golf Car
•Buggies

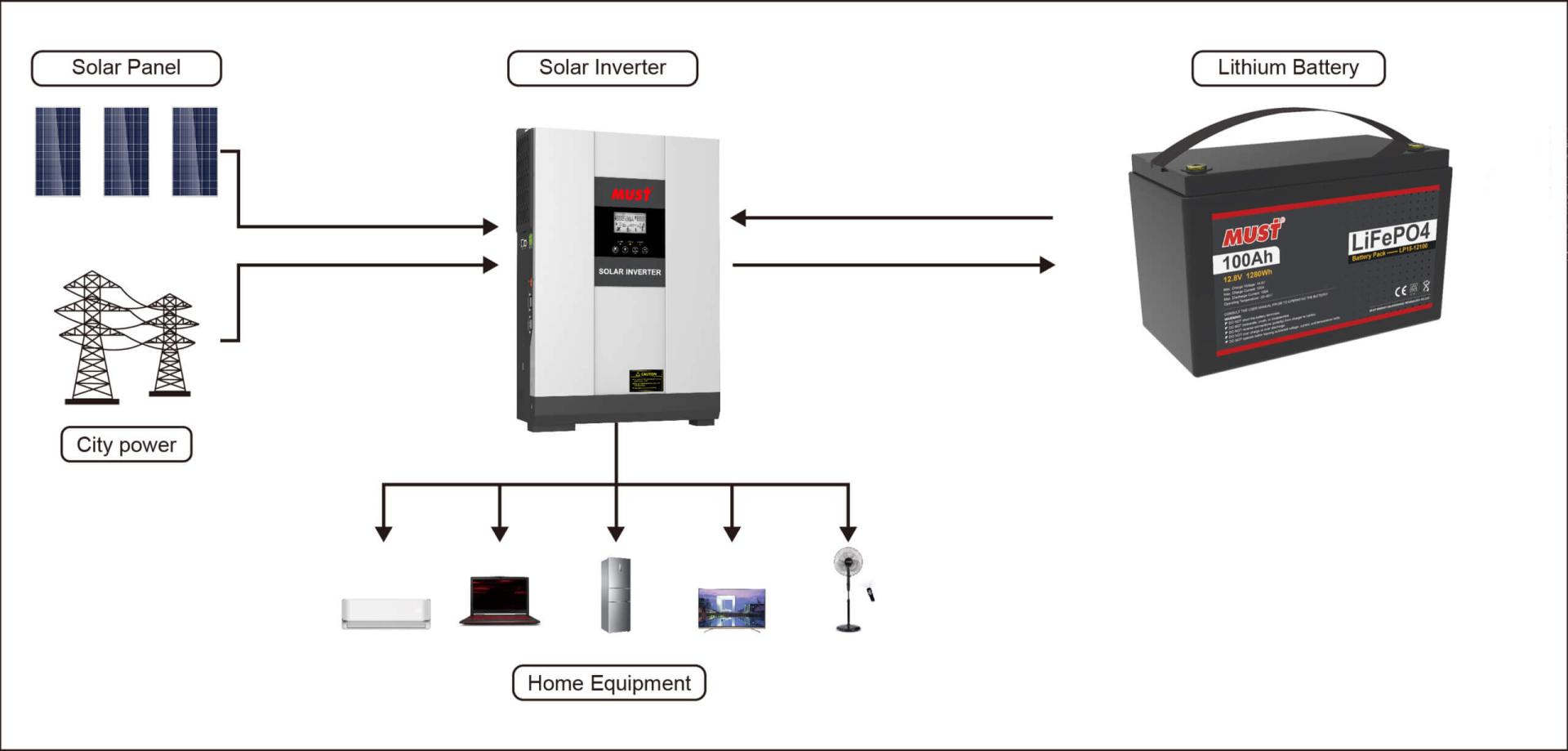

•Solar Storage
•Remote Monitoring
•Switching applications and more

FEATURES & BENEFITS

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

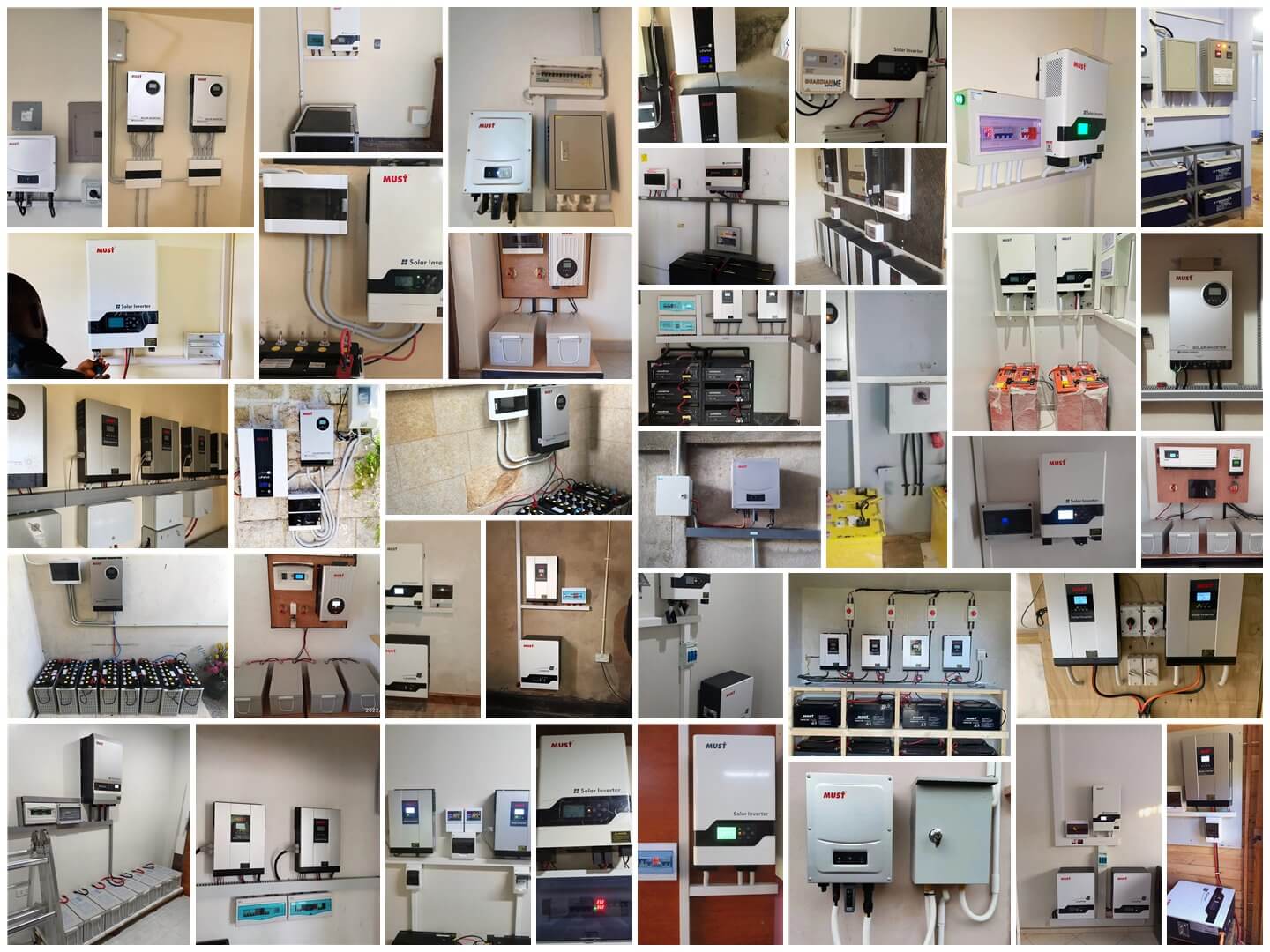

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 1

MODEL LP15-12100
Nominal voltage 12.8V
Nominal Capacity 100Ah
Nominal energy 1280Wh
Life Cycles 6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage 14.6V
Recommended Charge Current 20.0A
End of discharge voltage 10.0V
Standard method Charge 20.0A
Discharge 50.0A
Maximum continuous current Charge 50A/100A
Discharge 50A/100A
BMS Cut-Off Voltage Charge <15.6 V (3.9V/Cell)
Discharge >8.0 V (2s) (2.0V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥12.8V
Case Material ABS+PC
Dimension (L x W x H) 320 x 172 x 215 mm 12.6 x 6.7 x 8.5”
Approx. Weight 26.5 lbs (12 kg)
Charge retention and capacity recovery capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
