Lead Acid Replacement 12/24V

Lithium Iron Phosphate Battery LP15-24200 (25.6V/200Ah) Lithium Iron Phosphate Battery LP15-24200 (25.6V/200Ah)

This battery comes equipped with a state of the art built-in Battery Management System (BMS). The Humless Lithium-Iron battery is lighter, more compact, and more powerful than traditional lead-acid batteries.

Features:

  • 6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
  • Low maintenance batteries with stable chemistry;
  • Battery Management System (BMS) is incorporated against abuse;
  • up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
  • Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
  • Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
  • Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Get Pricing/Info


Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

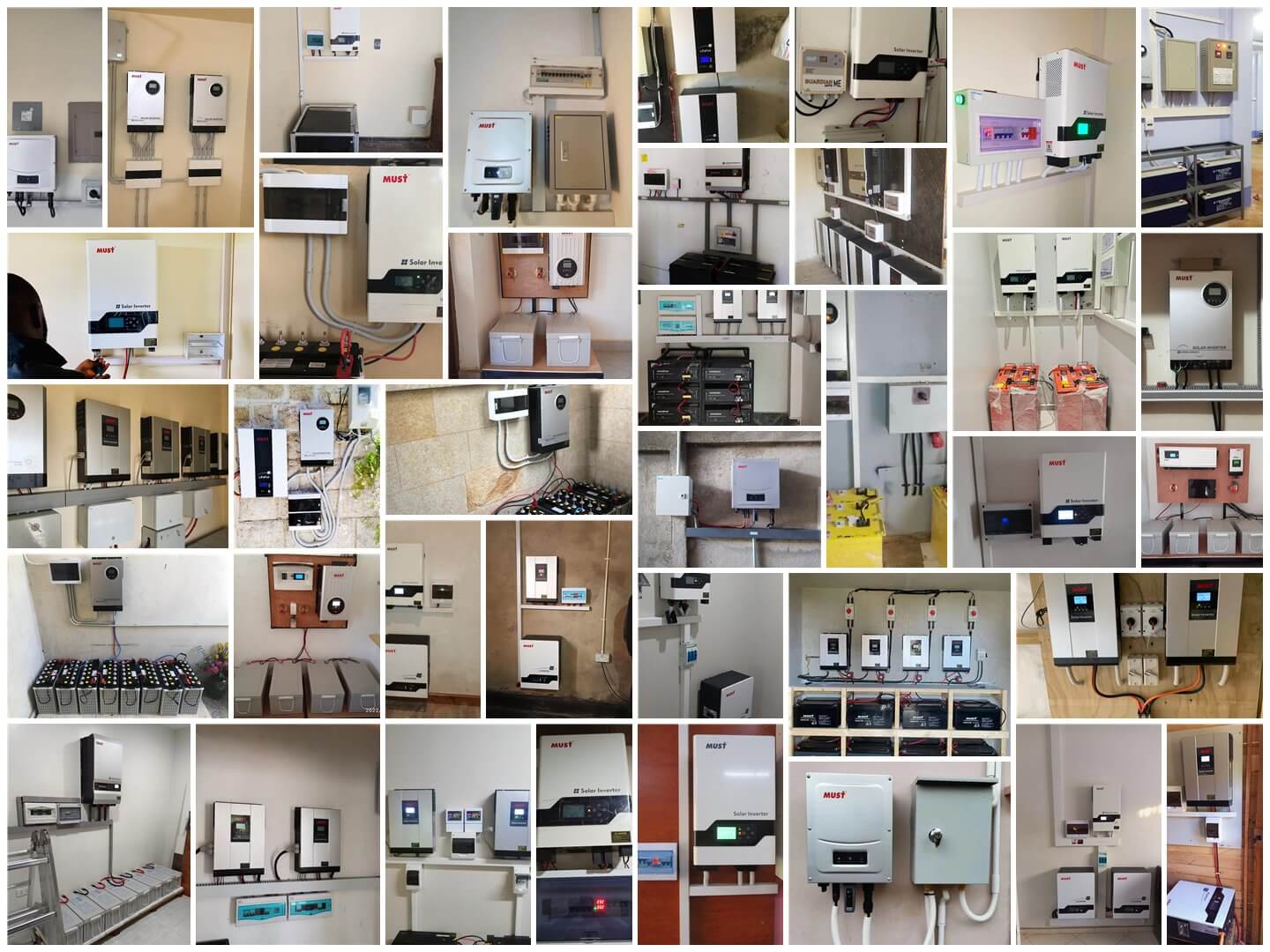

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 5

MODEL LP15-24200
Nominal voltage 25.6V
Nominal Capacity 200Ah
Nominal energy 5120Wh
Life Cycles 6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage 29.2V
Recommended Charge Current 20.0A
End of discharge voltage 20.0V
Standard method Charge 40.0A
Discharge 100.0A
Maximum continuous current Charge 100.0A/ 200.0A
Discharge 100.0A/ 200.0A
BMS Cut-Off Voltage Charge <31.2 V (3.9V/Cell)
Discharge >16.0 V (2s) (2.0V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥25.6V
Case Material ABS+PC
Dimension (L x W x H) 522 x 240 x 218 mm 20.6 x 9.5 x 8.6
Approx. Weight 99.2 lbs (45 kg)
Charge retention and capacity recovery capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
