Solar Lithium battery

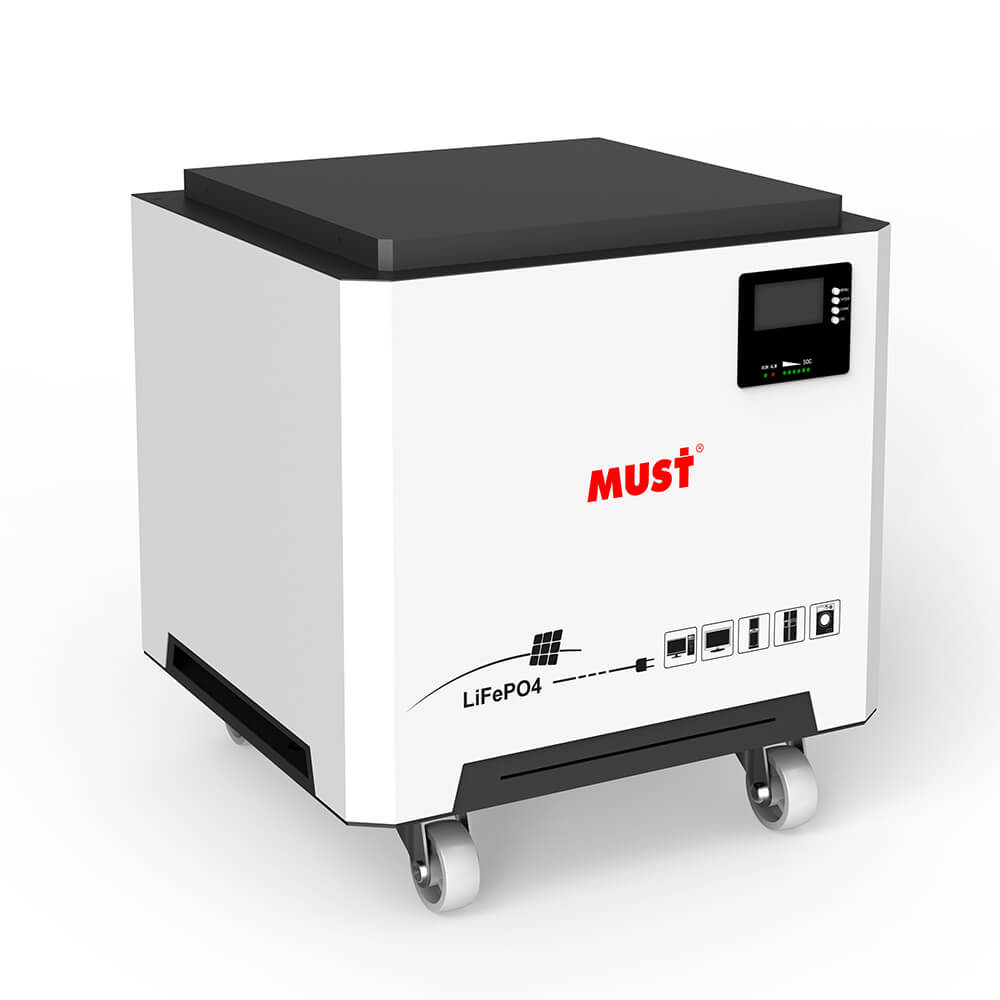

Lithium Iron Phosphate Battery LP20-25200 (25.6V/200Ah)

LP2000 is a new type of lithium battery energy storage system. Energy storage is configured differently depending on the needs of the home, the batterycapacity is 5.12kWh to 12.8kWh. Very suitable for home emergency power storage as solar battery.

Features:

  • Flexible modular system;
  • High-efficient energy storage battery;
  • Safe & reliable performance with LiFePO4 cell;
  • The battery has a long life cycle;
  • telligent Monitor System.
Get Pricing/Info


APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS

FEATURES & BENEFITS

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 0

MODEL LP20-25200
Nominal Voltage 25.6V
Nominal Capacity 200Ah
Energy 5120Wh
Communication CAN2.0/RS232/RS485
Resistance ≤50 mΩ @ 50% SOC
Efficiency ≤96%
Recommended Charge Current 100A
Maximum Continuous Discharge Current 100A
Maximum load power 2.5KW
Recommended Charge Voltage 28.8V
BMS Charge Cut-Off Voltage <29.2 V (3.65V/Cell)
Reconnect Voltage >28.8 V (3.6V/Cell)
Balancing Voltage <28.8 V (3.6V/Cell)
Balancing open voltage 27.6V (3.45V/Cell)
Recommended Low Voltage Disconnect 22V (2.75V/Cell)
BMS Discharge Cut-Off Voltage >20.0V (2s) (2.5V/Cell)
Reconnect Voltage >22.0V (2.75V/Cell)
Discharge Temperature -4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature -4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 131 ºF (55 ºC)
Dimension (L x W x H) 540*450*473mm
Terminal Type DIN POST
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material SPPC
Enclosure Protection IP20
Certifications CE (battery) UN38.3 (battery) UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9
