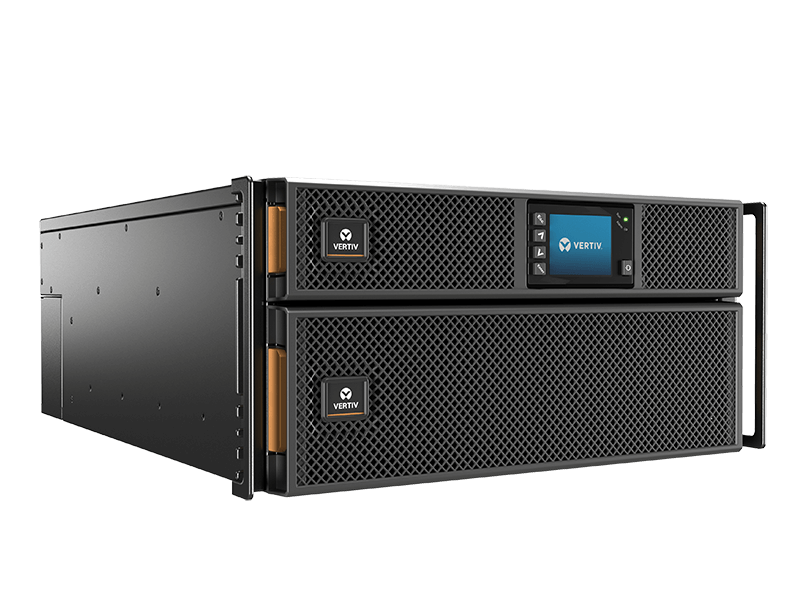

Vertiv Liebert GXT5 750VA – 20kVA
Vertiv™ Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers robust power outage protection and continuous power conditioning in a compact and flexible deployment system. Liebert GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications. Liebert GXT5 comes with various models ranging from 750VA to 20kVA and in both tower or rack form factor.
Features:
- Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
- Top-level on-line double conversion UPS for mission-critical application
- Unity output power factor
- LCD multi-language color display (gravity sensing)
- On-line (VFI) mode efficiency up to 95.9% at full load
- Active ECO mode efficiency up to 99%
- Energy Star 2.0 certified
- Controllable and programmable output sockets
- Integrated solution with batteries and electronics
- External battery cabinets auto-detection
- Operates at full power up to 40°C (up to 50°C with derating)
- Intelligent Communication ready
- Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
Features
Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 95.9% at full load
Active ECO mode efficiency up to 99%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
Visits: 2
MODEL SPECIFICATIONS OVERVIEW
| 750 VA / 750 W | 230 VAC | 230 VAC | Up to 93% | 85 mm | 400 mm | 430 mm | 16.5 kg |
| 1000 VA / 1000 W | 230 VAC | 230 VAC | Up to 93% | 85 mm | 400 mm | 430 mm | 16.5 kg |
| 1500 VA / 1500 W | 230 VAC | 230 VAC | Up to 93% | 85 mm | 470 mm | 430 mm | 21 kg |
| 2000 VA / 2000 W | 230 VAC | 230 VAC | Up to 93% | 85 mm | 470 mm | 430 mm | 21 kg |
| 3000 VA / 3000W | 230 VAC | 230 VAC | 94% | 85 mm | 540 mm | 430 mm | 28.5 kg |
| 5000 VA / 5000 W | 230 VAC | 230 VAC | 94% | 217 mm | 430 mm | 630 mm | 70.8 kg |
| 6000 VA / 6000 W | 230 VAC | 230 VAC | 94% | 217 mm | 430 mm | 630 mm | 70.8 kg |
| 8000 VA / 8000 W | 230 VAC | 230 VAC | 94.5% | 217 mm | 430 mm | 630 mm | 74.5 kg |
| 10, 000 VA / 10,000 W | 230 VAC | 230 VAC | 95% | 217 mm | 430 mm | 630 mm | 74.5 kg |
| 16,000 VA / 16,000 W | 230 VAC | 230 VAC | Up to 95.9% | 394 mm | 430 mm | 630 mm | 135.2 kg |
| 20,000 VA / 20,000 W | 230 VAC | 230 VAC | Up to 95.9% | 394 mm | 430 mm | 630 mm | 135.2 kg |
