Lithium-Ion Battery Energy Storage System

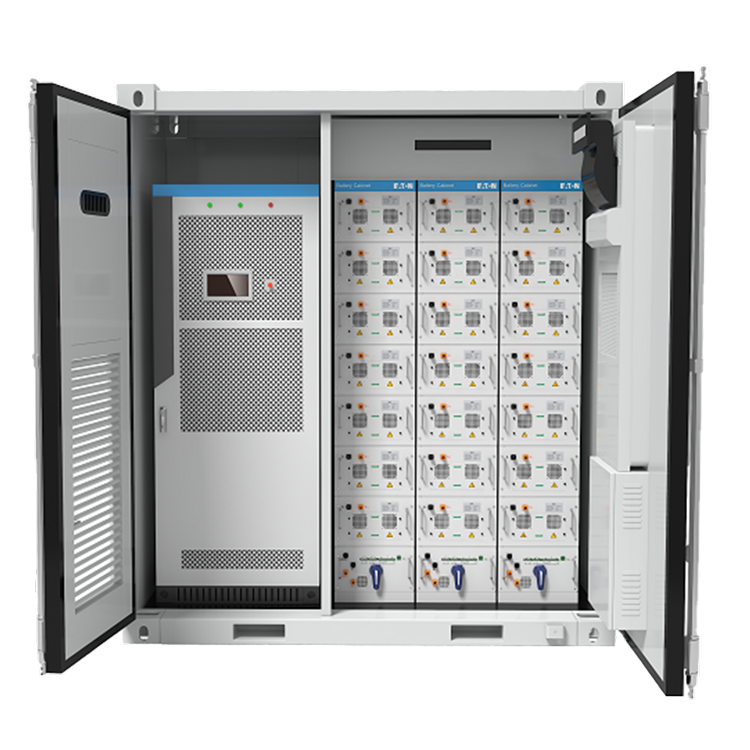

XStorage 10 foot container microgrid energy storage system – M50/M100

The xStorage series includes multiple product lines of container battery energy storage systems, aimed at meeting the needs of microgrid applications. Among them, the M50/M100 is a series of 10 foot prefabricated, one-stop systems suitable for small business applications and renewable energy systems. The M50/M100 includes UL9540A certified lithium-ion battery clusters, battery management systems (BMS), energy management systems (EMS), energy storage inverters (PCS), transformers, fire protection systems, and HVAC systems, aimed at ensuring the continuity of power supply and working in coordination with photovoltaic power generation systems.

Features:

  • Rated power: 50 kW/100 kW
  • Rated capacity: n * 64 kWh (n=2~6)
  • Supports grid connection mode and island mode
  • Simultaneously compatible with photovoltaic power sources, diesel generators, and the main power grid
  • UL 9540A certified lithium battery ensures system safety
  • Integrated container design, the protection level of the entire system is IP54, and the protection level of the battery cabinet is IP65
  • The battery cycle life is greater than 6000 cycles
  • Plug and play design, easy to install
Get Pricing/Info


Product features
Rated power: 50 kW/100 kW
Rated capacity: n * 64 kWh (n=2~6)
Supports grid connection mode and island mode
Simultaneously compatible with photovoltaic power sources, diesel generators, and the main power grid
UL 9540A certified lithium battery ensures system safety
Integrated container design, the protection level of the entire system is IP54, and the protection level of the battery cabinet is IP65
The battery cycle life is greater than 6000 cycles
Plug and play design, easy to install

Typical applications
Small scale microgrid systems – store renewable energy or low-priced electricity during off peak hours, perform peak shaving, and save electricity costs; By combining the use of photovoltaic equipment, the self supply energy consumption of solar energy can be increased, thereby further reducing energy costs.



Visits: 11

  • This outdoor battery cabinet incorporates advanced liquid cooling technology. With its high level of system integration, it offers easy installation and enhanced efficiency. The energy storage cabinet is equipped with multiple intelligent fire protection systems, ensuring optimal safety. Additionally, it is scalable up to 372.7 kWh, allowing for flexible layout options. These make the XStorage 10 - M50/M100 the ideal choice for small and medium-sized businesses.
